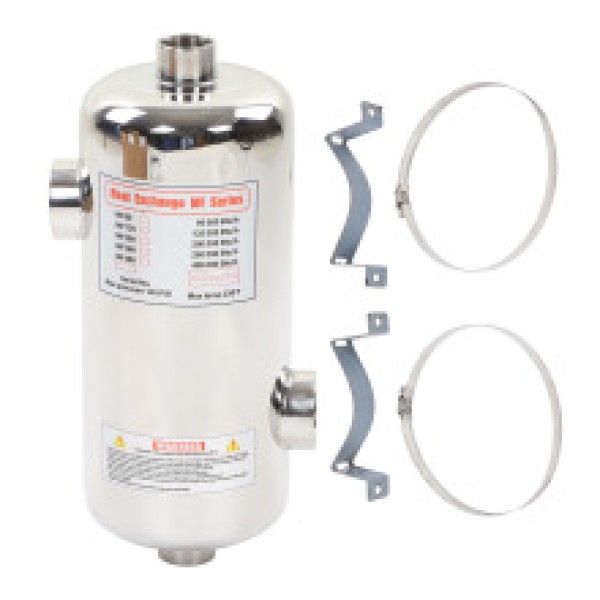

40 kW Pool Heat Exchanger Stainless Steel Spa Solar Heating

40 kW Pool Heat Exchanger Stainless Steel Spa Solar Heating System Description

1. Stainless Steel Material: The pool heat exchanger is made from high-quality corrosion-resistant stainless steel, resistant to rust and saltwater corrosion, and durable.

2. Constant Temperature Heating: Uses water heating, converting cold water into hot water through thermal energy, for circulation heating. Can be installed with solar panels (solar panels not included).

3. Efficient Heat Exchange: Features a built-in flow limiter designed to minimize pressure loss in the heating system, ensuring maximum heat exchange.

4. Space-Saving: Equipped with stainless steel mounting brackets for easy installation, compact in size, lightweight, and requiring minimal installation space.

5. Wide Application: This heat recovery pool heater is suitable for swimming pools, spa pools, hot tubs, solar heating, hydraulic heating, oil cooling, heat recovery, snow melting, etc.

Product Specifications:

• Type: Pool Heat Exchanger

• Material: Stainless Steel

• Weight: Approx. 2837g / 100.07 oz

• Dimensions: Approx. 34.2 x 15.7 cm / 13.46 x 6.18 inches

• Specification: 40 kW

• Maximum Operating Temperature: 230°F (110°C)

• Side Threads: Inner Thread 45mm / 1.77 inches

• Front and Rear Threads: Inner Thread 32mm / 1.26 inches

• Application: Suitable for all types of swimming pools, spa pools, and hot tubs

• Heat Exchanger Model: MF 135

• Pool Size: 12,000 gallons, heating power required per hour to raise 1°F: 100,098 BTU/hour

• Pool Size: 14,000 gallons, heating power required per hour to raise 1°F: 116,781 BTU/hour

• Pool Size: 16,000 gallons, heating power required per hour to raise 1°F: 133,464 BTU/hour

Package Includes:

• 4 x Accessories

• 1 x Pool Heat Exchanger

• 1 x User Manual
