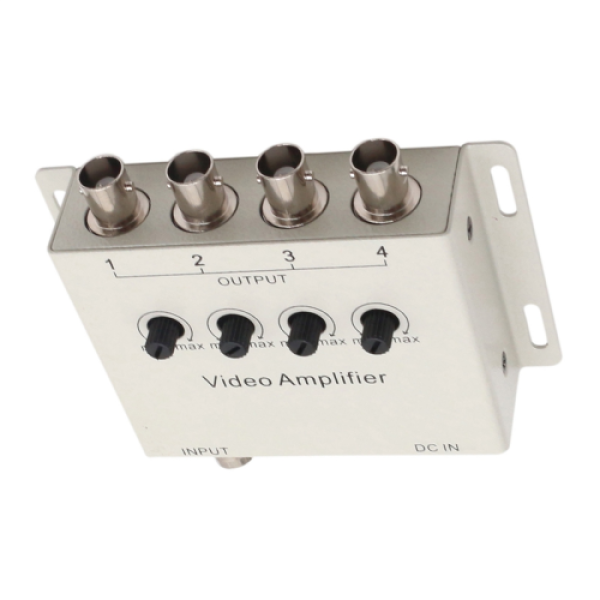

Video Amplifier 4-Channel Video Amplifier Splitter (EU Plug)

Video Amplifier 4-Channel Video Amplifier Splitter (EU Plug)
Description:
This 4-way video amplifier splitter amplifies the input video signal through multiple stages with an adjustable gain on each output port. The maximum amplification is 2dB, which helps resolve signal loss caused by long-distance wiring and ensures the image quality is preserved across multiple display devices.
Signal Type: Composite Video (CVBS).

Product Applications:

1. Composite Video Surveillance Systems

2. Audio and Video Display Playback

3. In-Car Multi-Screen Advertising

Input Port: 1
Output Ports: 4
Video Input: 1Vp-p / 75Ω
Video Gain: ≤0dB, ≤2dB
Power Supply: DC12V/1A
Rated Power: 3W
Operating Temperature: -10°C to 40°C
Plug Type: EU plug (compatible with Indonesia, Germany, France, Spain, Italy, and other countries)
Voltage: AC100-240V
Color: As shown
Material: Metal

Package Contents:
1 x Video Amplifier
1 x Power Adapter

Note:
Light reflection and different displays may cause slight color differences between the product image and the actual item. Measurement errors are allowed at +/- 1-3 cm.
