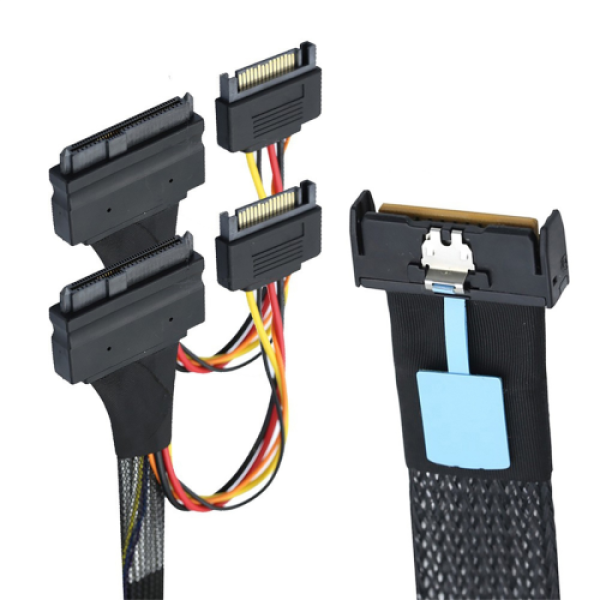

SAS MCIO 8i 74P to 2XSFF 8639 + 15P Adapter Cable 0.5 Meter

SAS MCIO 8i 74P to 2XSFF 8639+15P Adapter Cable 0.5 Meter

Description:

1. Smaller connectors and cables save device space.

2. Provides industry-standard four-way signal transmission.

3. Data transfer speed: 32Gbps per channel (SAS).

4. Compliant with SAS 5.0, Slim SAS SFF-8654, and PCIe MCIO specifications.

Applications:

1. Servers

2. Data storage

3. Workstations

Mechanical Performance:

1. Insertion force: Max 55.5N

2. Extraction force: Max 49N

3. Rated durability cycles: Min 250 cycles

Electrical Performance:

1. Voltage: 30VDC per contact, Simulas 4i plug: Initial max 80MΩ, stress test max 20MΩ.

2. Dielectric withstand voltage: 300V, minimum 100ms.

3. Insulation resistance: Minimum 10MΩ between adjacent pins.

4. Characteristic impedance: 100Ω.

Signal Integrity:

1. Matched connector impedance: 100±10% ohms.

2. Common-mode impedance: Complies with SAS 5.0 standards.

3. Insertion loss: Complies with SAS 5.0 standards.

4. Maximum crosstalk: Complies with SAS 5.0 standards.

Color: Black
Material: Plastic + Braided wire
Length: 0.5 meters

Package Contents:
1 x SAS MCIO 8i 74P to 2XSFF 8639+15P Adapter Cable.

Only the above package contents are included, no other products.
Note: The color of items in the pictures may vary slightly from the actual product due to lighting and different displays. Measurement error is +/- 1-3 cm.
